50A Jewelry Spot Welding Machine Soldering Tools and Equipmet
Product Description:
Spot welding machine can be used for platinum. Gold. K gold.
Silver. Steel rapid welding, the ring mouth, melon seeds buckle.
Fine wire precision welding, direct welding without welding powder.
The use of plasma high-frequency discharge principle, in the metal
welding port instantly forming molten pool
Adjust the output power according to the wire size
The welding of the workpiece smooth, solid, fast, high efficiency
Installation and commissioning:
1. Electrode clamping output negative electrode, the electrode seat
output positive pole.
2. Tungsten needle can be sharpened in the grinding machine, the
use of cutting-edge discharge principle.
3 tungsten needle diameter 1.5mm
Steps:

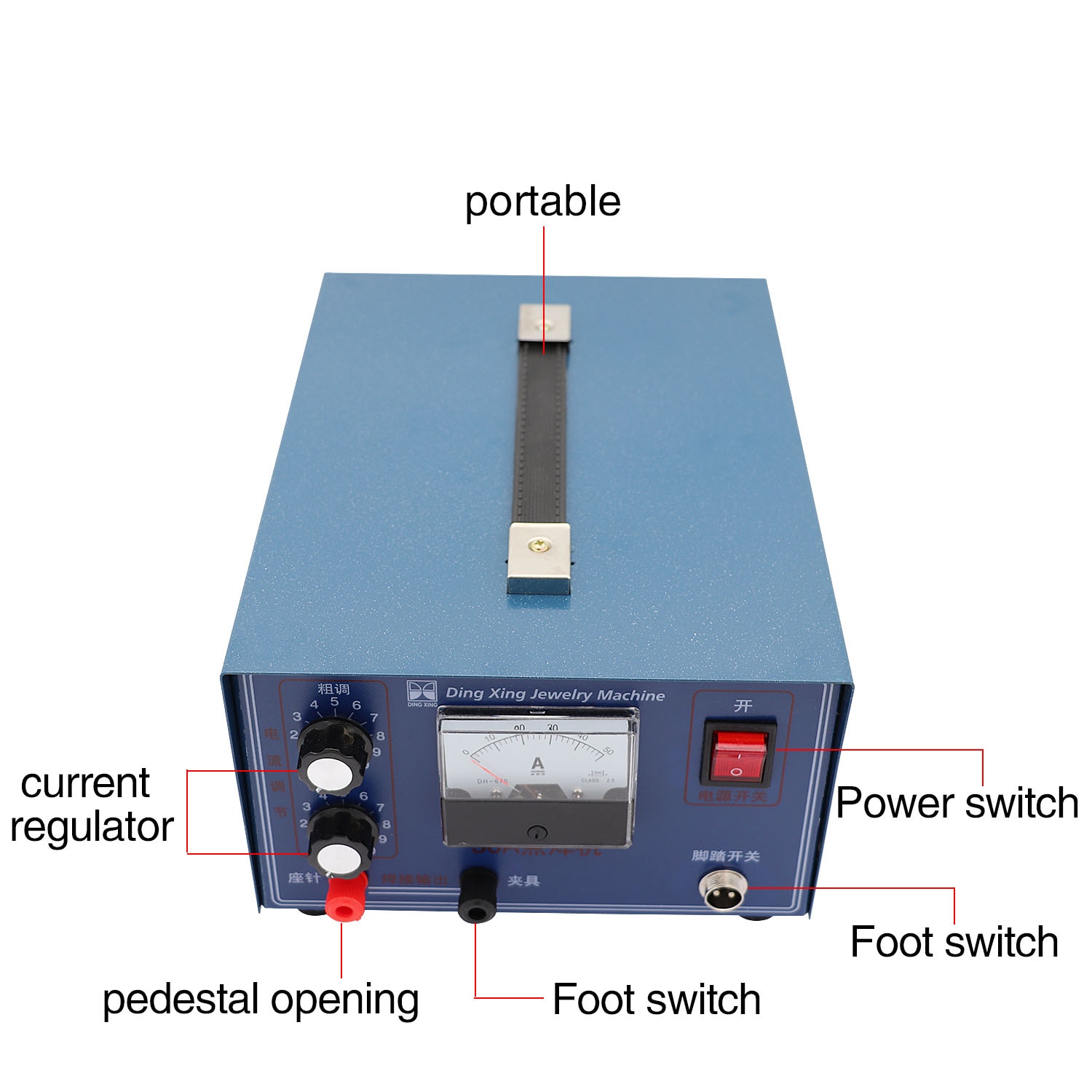

1. Turn on the power and turn on the power switch.
2. Adjust the power knob, divided into coarse and fine. According
to the work requirements can be adjusted scale value
3. The workpiece is aligned with the tweezers. The workpiece
interface is aligned with the tungsten needle (the optimum distance
is 5mm).
4. With the foot pedal switch (remove the foot). Spot welding is
completed.
Input voltage:110V/220V
Power:500W
Output current:0.5-30A
Weight:5.5kg
Welding diameter range:0.6-1.2mm
Applicable metal:Gold, silver, platinum and copper
Working distance:0.5-1.0mm (Between needle and workpiece)

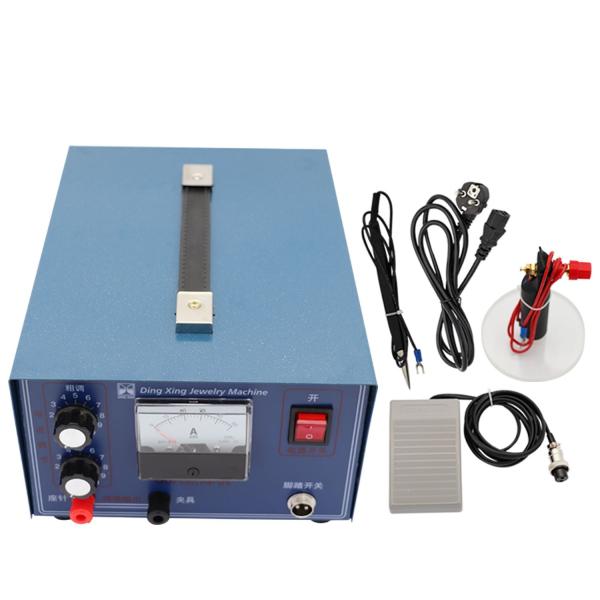

STANDARD ACCESSORIES -
1 x Main Unit /
1 x Power Cord /
1 x Foot Pedal /
1 x Set Accessories /.
Product Size: 30*23*17cm
Technical Parameters |
Nameplate Capacity | |
| |
| |
| |
| |
Ampere for welding | 0.5~50A,Continuous adiustable (Fluctuation) |
Action Object | Metal |
Principle of action | Pulse |
Drive Type | Electric |
